Ürün detayları
| DONANIM ÖZELLİKLERİ | |
|---|---|

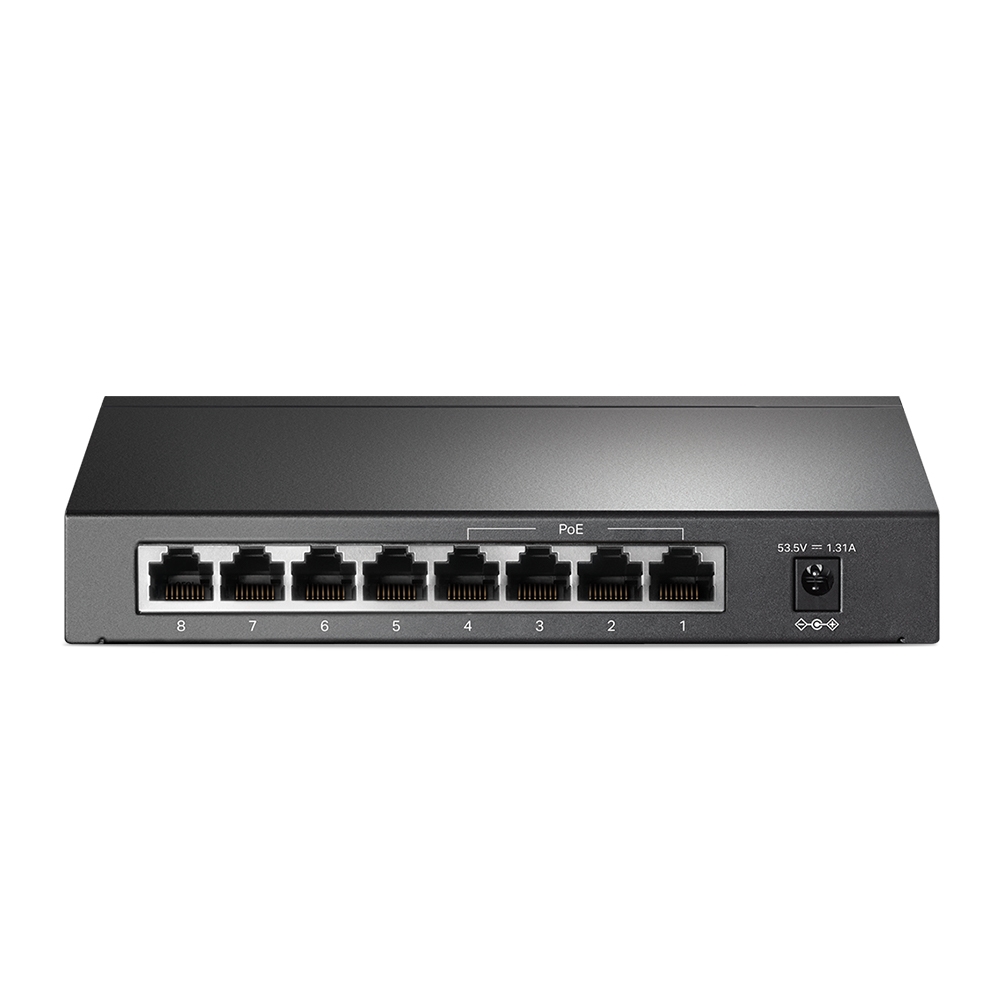

| Arabirim | • 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Ağ Medyası | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Sayısı | Fanless |
| Fiziksel Güvenlik Kilidi | Yes |
| Harici Güç Kaynağı | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Paket Yönlendirme Hızı | 1.1904 Mpps |

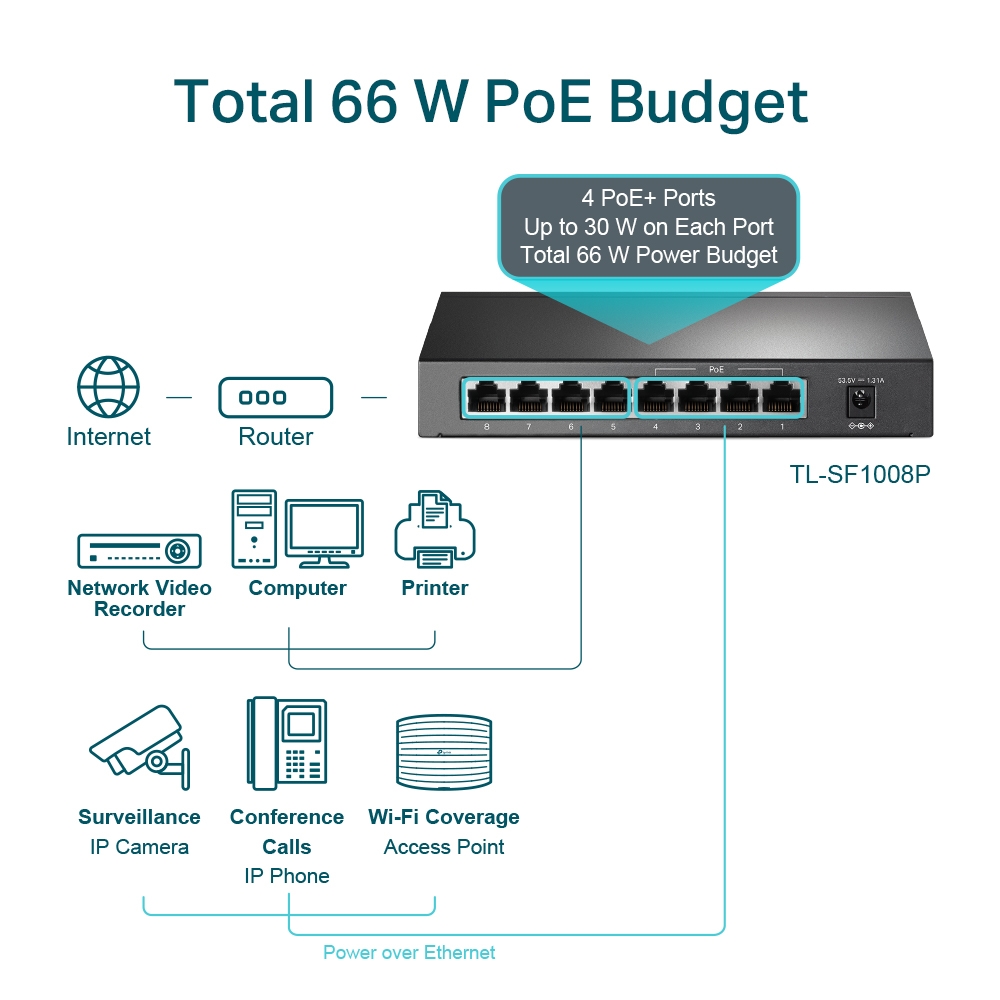

| PoE Portları (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 66 W |
| MAC Adres Tablosu | 2K |
| Jumbo Frame | 2 KB |
| Switching Kapasitesi | 1.6 Gbps |
| Boyutlar ( W X D X H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Maks. Güç Tüketimi | 2.3 W (220 V/ 50 Hz. no PD connected) 73 W (220 V/ 50 Hz. with 66 W PD connected) |
| Max Heat Dissipation | 7.84 BTU/h(no PD connected) 248.93 BTU/h(with 66 W PD connected) |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| İletim Metodu | Store-And-Forward |
| Gelişmiş Fonksiyonlar | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| DİĞERLERİ | |
|---|---|
| Sertifika | FCC, CE, RoHS |
| Paket İçeriği | TL-SF1008P, Power Adapter, Installation Guide |
| Ortam | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
